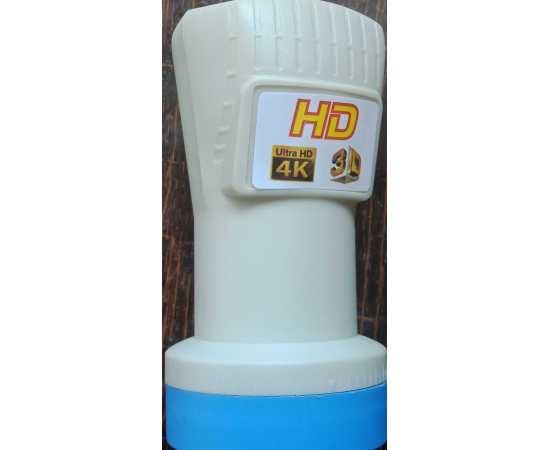

KU BAND LNB HD READY UNIVERSAL SINGLE LNB for HD Satellite Tv Dish Antenna Receiver
17% Off
Features:
- The Low Noise Block Down-converter Is Used In Combination An Antenna For Ku Band,
- And This Converter Can Receive Both Horizontally And Vertically Polarized Signals.
- General Specifications
- Input Frequency 10.7-12.75ghz
- L.o.frequency 9.75/10.6ghz±1mhz
- Stability ±1.0mhzl.o.phase Noise-55dbc/hz@1khz
- 80dbc/hz@10khz
- 100dbc/hz@100khz
- Out Put Frequency 950-2150mhz
- Conversion Gain 65db (Typ)
- Gain Flatness ±0.5db/6mhz; ±2.5db/in Band
- Noise Figure 0.1db (Typ)
- Dc Supply Voltage 11-14.5v (V),15.5-22v (H)
- Supply Current 95ma (Max)
- Out Put Connecter 75ω, F-type Female
Quality:
High Quality
Type:
Signal Receiver
Warranty:
7 Days Replacement Warranty
