Features:

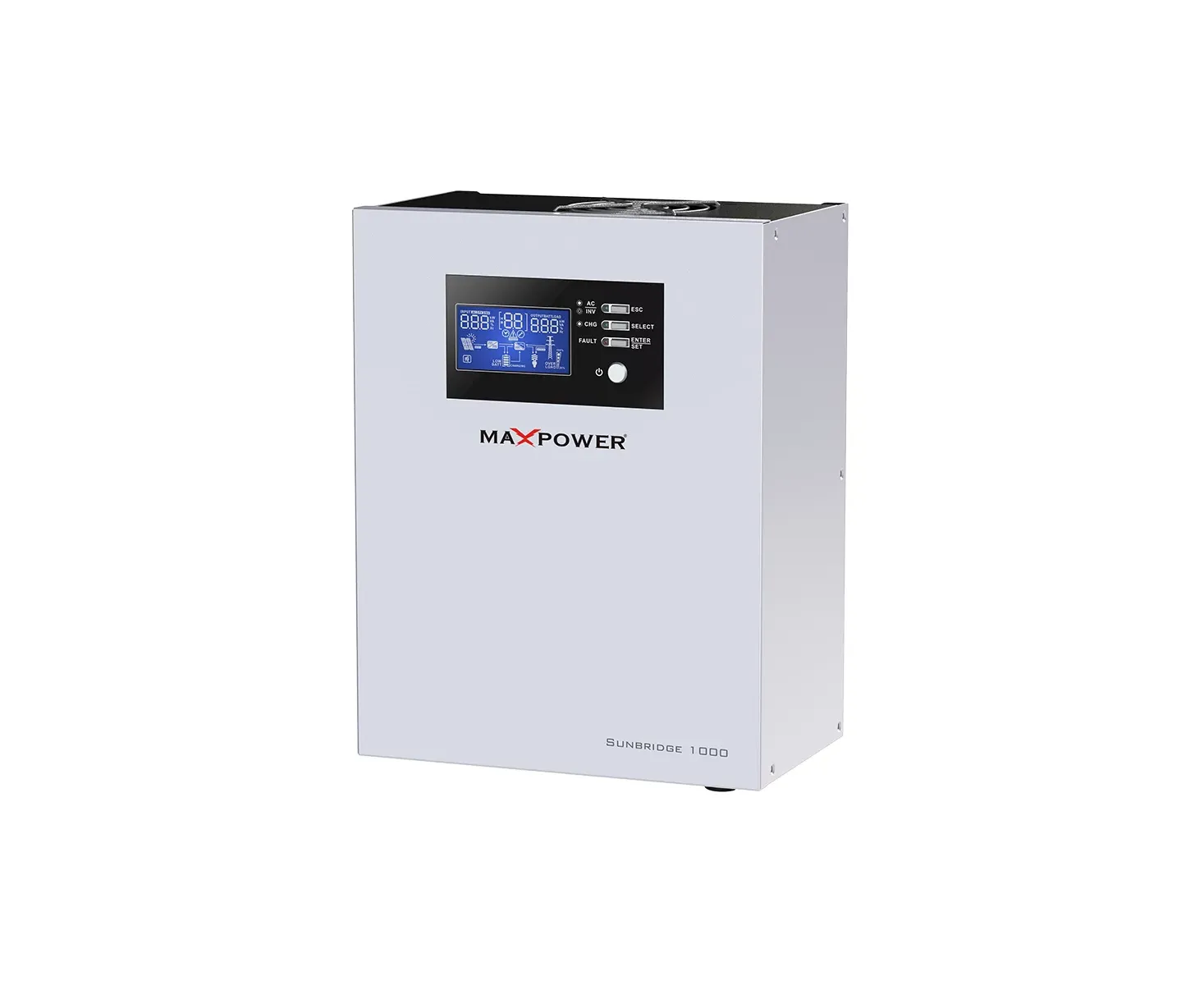

• MODEL Sunbridge 1000
• CAPACITY 1200VA/900W
• INPUT
• Voltage 230 VAC
• Selectable Voltage 90-280 VAC or 170-280 VAC
• Frequency Range 50 Hz/60 Hz (Auto sensing)
• OUTPUT
• AC Voltage Regulation (Batt. Mode) 230 VAC ±10%
• Efficiency (Peak) 82%
• Transfer Time 20 ms
• Waveform Simulated Sine Wave
• BATTERY
• Battery Voltage 12 VDC
• Floating Charge Voltage 13.7 VDC +0.5 VDC
• Overcharge Protection 15.0VDC +0.5 VDC
• SOLAR CHARGER & AC CHARGER
• Solar Charger Type MPPT
• Maximum PV Array Open Circuit Voltage 100 VDC
• Maximum PV Array Power 600 W
• MPP Range @ Operating Voltage 15 - 80 VDC
• Maximum Solar Charge Current 50A
• Maximum AC Charge Current 10A/20A
• Maximum Charge Current 50A
• PHYSICAL
• Dimension, DX W X H (mm) 272 x 212 x 127
• Net Weight (kgs) 4.5
• OPERATING ENVIRONMENT
• Humidity 0 to 90% Relative Humidity (Non-condensing)
• Operating Temperature 0°C to 55°C
• Storage Temperature -15°C to 55°C
