Speed-X 8400 1d Laser Handheld Barcode Scanner

Features:

• Speed-X 8500 2D Wire Cmos Handheld Barcode Scanner

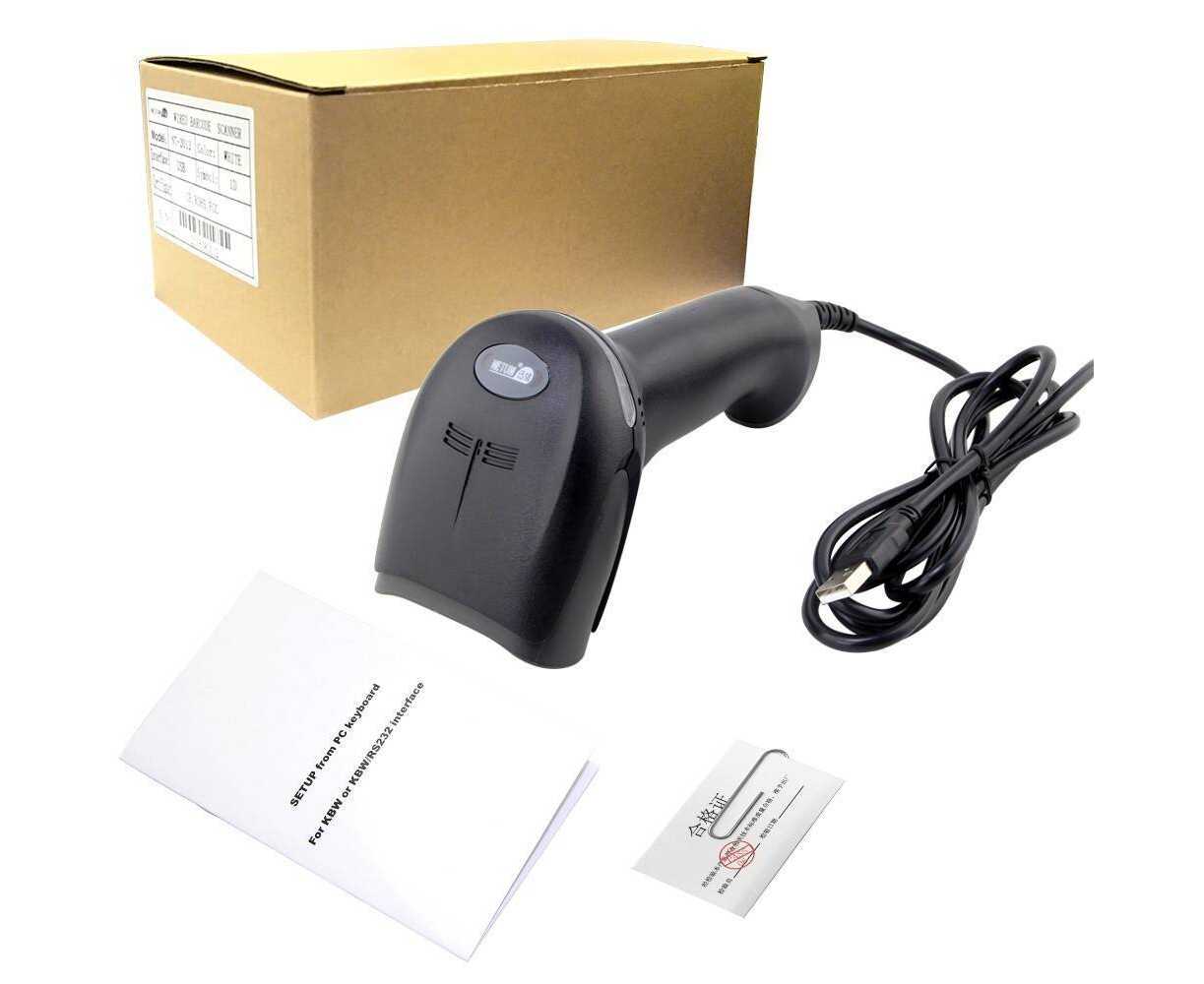

• Scanner with Plug & Play USB Cable & Stand

Electrical Characteristics:

• Interface USB HID KEYBOARD/USB VCP
• Voltage requirement 5VDC±10%
• Current consumption Max:120mA

Optical Characteristics:

• Photo sensor CMOS array sensor
• SENSOR RESOLUTION 648X488 pixels
• Light source White LED*1
• Aim light source Red Bar led
• Performance Characteristics
• Decode angle Pitch angle:±55°
• Skew angle:±55°
• Tilt angle:±180°
• Min resolution 1D:4mil(0.127)
• Min. PCS value ?30%UPC/EAN 13?13mil?
• Language multiple languages
• Field of View 20°(H),21°(V)
• Identification 1D?UPC/EAN, Code 128, Code 39, Code 93, Code 11,
• Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI
• 2D?QR, PDF417?Data Matrix

Physical Characteristics:

• Dimensions 67 mm H x97 mm W x165 mm D
• Weight 122.8g
• Environmental Characteristics
• Electrical Safety UL 60950?EN/IEC 60950
• EMI/RFI FCC Part 15 Class B, EN 55024/CISPR 22
• Humidity 5 - 95% (operation) ) 5 - 95% (storage)
• Shock drop test 1.5m drop onto a concrete surface
• Temp -20°to 60°C / -4°to 140°F((operation) ) -40°-to 80°C /-40°to 176°F(storage)
• fluorescent light 4000 lx max, direct sunlight 80,000 lx max, white light 4000 lx max
